SA210A1 Boiler Economizer Bundle for Waste Incinerators ASME Standard

Cuota De Producción: 10 toneladas
Embalaje Estándar: Marco de acero
Período De Entrega: 50-150 días
Método De Pago: LC, T/T
Capacidad De Suministro: 9000 toneladas por año
Información detallada
Descripción del producto
Información detallada
Lugar de origen
Porcelana
Certificación
ASME, ISO, EN
Número de modelo
ECO001
Nombre del producto:
Paquete de economizador de caldera
Aplicación:
Incineradores de residuos
Material de tubo base:
SA210A1
Dimensión del tubo:
OD50.8mm*4.59mm MWT
Técnica de producción:
Flexión de tubo
Estándar de fabricación:
Asme
Descripción del producto
SA210A1 Boiler Economizer Bundle for Waste Incinerators ASME Standard
Economizer is a device installed at the lower part of the tail flue of a boiler to recover the waste heat from the exhaust gas. It heats the boiler feedwater into a saturated water heating surface under the pressure of the steam drum. Due to its absorption of heat from high-temperature flue gas, it reduces the exhaust temperature of the flue gas, saves energy, and improves efficiency. Therefore, it is called an economizer.
The steel tube economizer is not limited by pressure and can be used as a boiling type. It is generally made of carbon steel pipes with an outer diameter of 32-51 millimeters. Sometimes fins and ribs are added to the tube to improve heat transfer efficiency. The steel tube economizer consists of horizontally arranged parallel elbow pipes (commonly known as serpentine pipes).
Economizers are mainly suitable for industry and are gradually becoming popular in agriculture and some related industries.
Product Specifications
Attribute Value
Product Name Boiler Economizer
Application Waste Incinerator
Material of Base Tube SA210A1
Tube Dimension OD50.8mm*4.59mm MWT
Production Technique Tube Bending
Fabrication Standard ASME
Product Overview

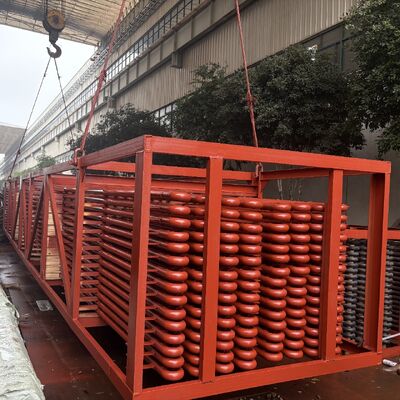

The Boiler Economizer SA210A1 with handcuffs and tube shields is designed for waste incinerator applications. This heat recovery device is installed at the lower part of the boiler tail flue to efficiently recover waste heat from exhaust gases.

SA210A1 Boiler Economizer Bundle for Waste Incinerators ASME Standard 0
Technical Parameters
Description Specification
Material SA210A1 and SA36
Material standard ASME
Dimension Customization
Weight Min: 10 ton Max: 1000 ton
Manufacturing Process
  1. Material preparation
  2. Tube Bending and Bevelling
  3. Butt Welding
  4. Shield Manufacturing
  5. Assembly 1
  6. RT (Radiographic Testing)
  7. Handcuffs and Shields Welding
  8. Assembly 2
  9. Hydro Test
  10. Cleaning and Painting
  11. Packing into Frames
Working Principle

The boiler economizer operates in three distinct heating stages: feed water preheating, evaporation, and superheating. As the first stage in this process, the economizer preheats feed water, making it the lowest temperature heating surface in the boiler steam and water circuit. The working fluid passing through this equipment is monophasic water (non-boiling economizer).

Key Benefits
  • Recovers waste heat from exhaust gases
  • Reduces flue gas exhaust temperature
  • Improves energy efficiency
  • Suitable for industrial applications
  • Customizable dimensions and specifications
  • ASME standard fabrication
Company Profile

Our products have been widely implemented in major power plants across China, delivering stable and significant economic benefits. We maintain a strong focus on product development and quality improvement, while actively expanding our international market presence through strategic partnerships.
